Ultra-low temperature anti-wear hydraulic fluids

Suitable for hydraulic systems with an operating temperature of -30 to 120°C and a working pressure that can be higher than 14Mpa.

Category：

Hydraulic Oil

Hotline：

+8617786852280

Consultation

Description

- Commodity name: Ultra-low temperature anti-wear hydraulic fluids
Suitable for hydraulic systems with an operating temperature of -30 to 120°C and a working pressure that can be higher than 14Mpa.

Product range

Product grades: 22, 32, 46.

Other grades and special cleanliness products are available on request.

Technical specifications

Standard: GB 11118.1

Standards: ISO 11158, DIN 51524-3, Denison HF-0/HF-1/HF-2, Eaton 03-401-2010, Cincinnati P68/P70

Scope of application

▪ Suitable for hydraulic systems with working temperatures from -30 to 120°C and working pressures up to 14Mpa.

▪ Particularly suitable for mobile hydraulic equipment such as excavators, loaders and bulldozers where the operating temperature is between -30 and -18°C.

▪ Particularly suitable for wind power hydraulic systems with wide temperature requirements.

▪ Particularly suitable for precision CNC machine tool hydraulic systems equipped with intermittent servo valves and sensitive to changes in system deposits and viscosity.

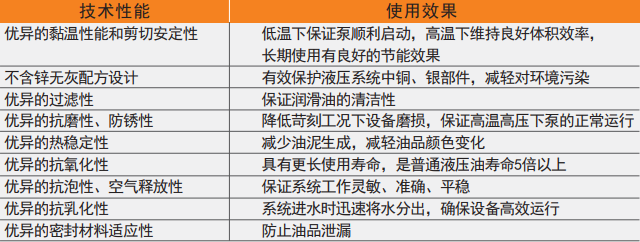

Performance characteristics

Typical data

Packaging, storage and transportation

▪ Packaging, marking, transport, storage, delivery and acceptance are in accordance with SH 0164 standards.

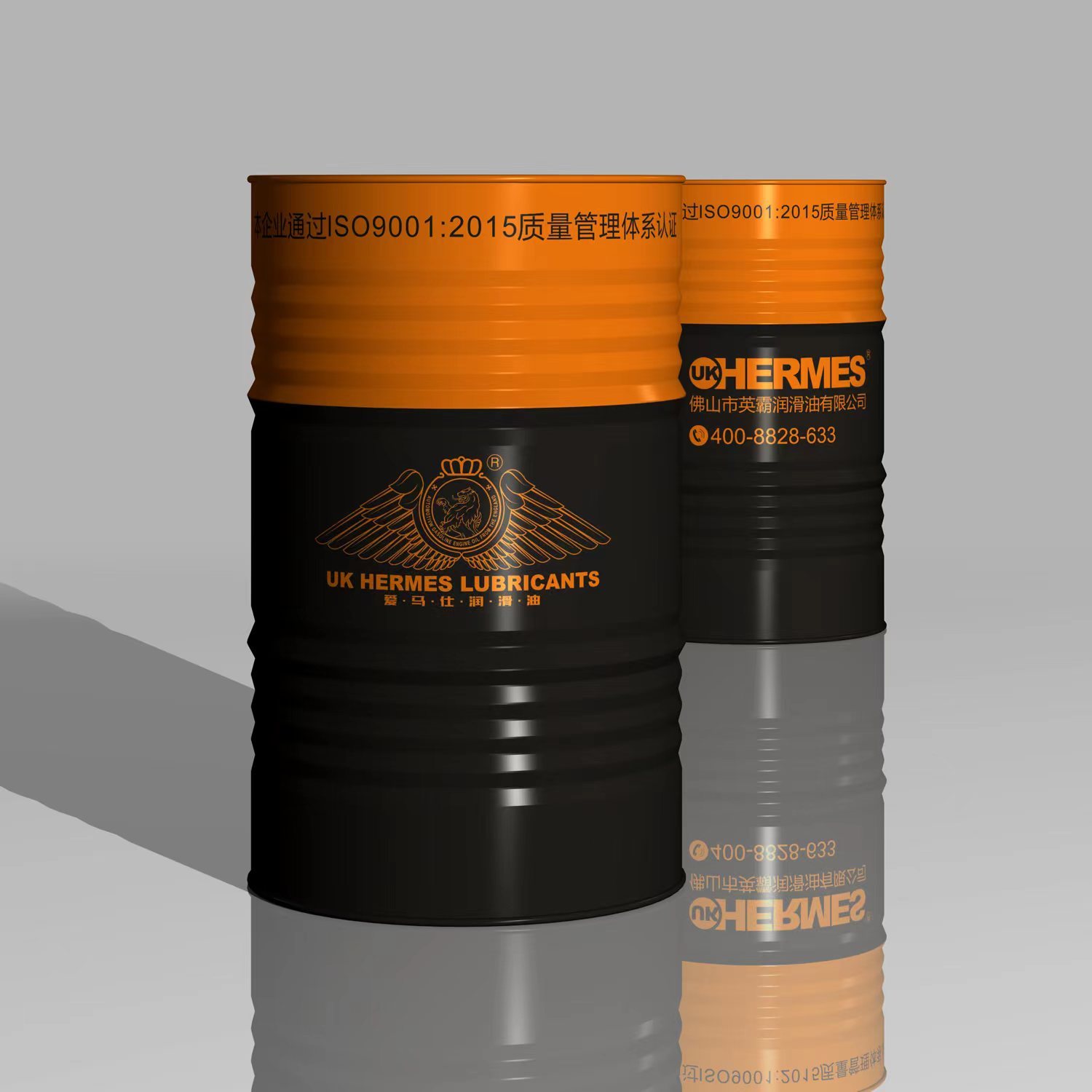

▪ Packed in 200L drums with a net weight of 170kg and can be packed and shipped according to customer requirements.

Cautions

▪ The transport process must be clearly marked to prevent confusion with other types of petroleum products.

▪ Storage containers must be used exclusively and stored indoors or in a controlled climate as far as possible, and must be waterproof, moisture-proof and protected from mechanical contaminants.

▪ Use oils of the right quality and viscosity level according to the oil regulations for the equipment, and do not mix different types of hydraulic fluids.

▪ Containers, tanks, pipelines and valves should be carefully cleaned and inspected before use to prevent contamination.

Health and safety

▪ Avoid prolonged or repeated contact with skin, prohibit drinking and keep away from children.

▪ Please protect the environment, packaging and waste liquids should be handed over to a qualified unit for centralised disposal, pouring into drainage systems, water and soil is prohibited.

▪ For additional health and safety information please refer to the Safety Data Sheet (MSDS) for this product.
