Medium Duty Industrial Closed Gear Oils


Suitable for low and medium speed enclosed gear drives where the tooth contact stress is less than 1100 MPa (N/mm2).

Category:

Gear Oil


电话

Hotline:

Consultation
  • Description
    • Commodity name: Medium Duty Industrial Closed Gear Oils

    Suitable for low and medium speed enclosed gear drives where the tooth contact stress is less than 1100 MPa (N/mm2).

    Product Varieties

    Product grades: 100, 150, 220, 320, 460.

    Other grades are available according to customer needs.



    Technical specifications

    Implementation standard: GB 5903-2011

    Meet the standard: ANSI/AGMA 9005-E02, ISO 12925-1



    Scope of application

    Suitable for low and medium speed closed gear transmission devices with tooth contact stress less than 1100MPa (N/mm2).

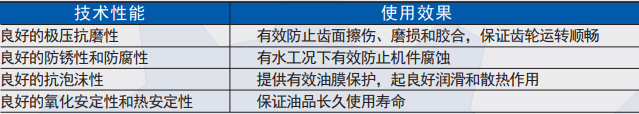

    Performance characteristics

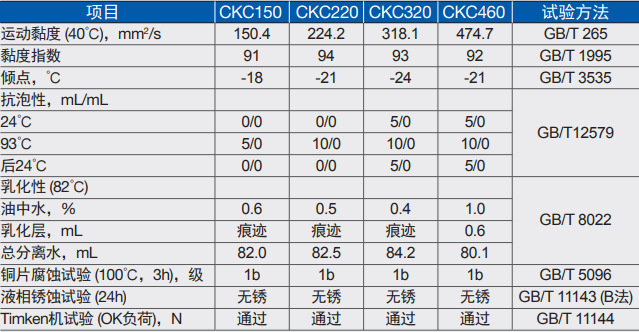

    Typical data



    Packaging, storage and transportation

    ▪ Packaging, marking, transport, storage, delivery and acceptance are in accordance with SH 0164 standards.

    ▪ Packed in 200L drums with a net weight of 170kg and can be packed and shipped according to customer requirements.



    Cautions

    ▪ The transport process must be clearly marked to prevent confusion with other types of petroleum products.

    ▪ Storage containers must be used exclusively and stored indoors or in a controlled climate as far as possible, and must be waterproof, moisture-proof and protected from mechanical contaminants.

    ▪ Use oils of the right quality and viscosity level according to the oil regulations for the equipment, and do not mix different types of hydraulic fluids.

    ▪ Containers, tanks, pipelines and valves should be carefully cleaned and inspected before use to prevent contamination.



    Health and safety

    ▪ Avoid prolonged or repeated contact with skin, prohibit drinking and keep away from children.

    ▪ Please protect the environment, packaging and waste liquids should be handed over to a qualified unit for centralised disposal, pouring into drainage systems, water and soil is prohibited.

    ▪ For additional health and safety information please refer to the Safety Data Sheet (MSDS) for this product.



    Key words:
